In this blog post, we will delve into the exciting project of creating a clap switch using a sound sensor. This innovative device allows you to control your lights by simply clapping your hands, making it a fun and practical addition to your smart home. Follow along as we explore the necessary components, connections, and programming required to bring this project to life.
Materials Required
Before we start, let’s gather all the materials you will need for this project:
- Sound Sensor
- Relay Module
- Microcontroller (like Arduino)
- Connecting Wires
- Power Supply
- LED Lights or Studio Lights

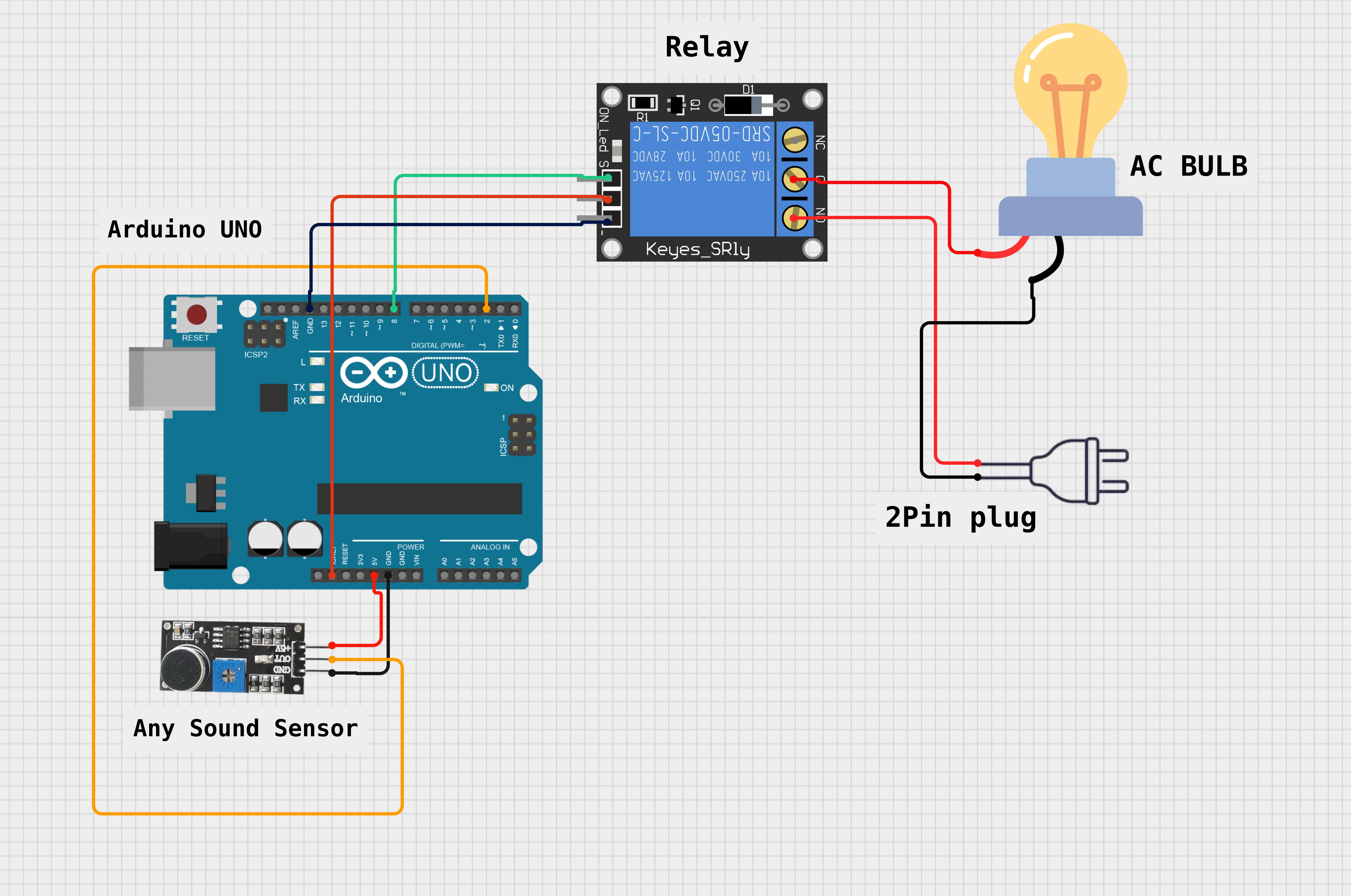

Circuit Diagram
Before we jump into the connections, it’s essential to understand the circuit diagram. This diagram outlines how each component is connected together.
Making the Connections
Now, let's start making the connections. First, we will connect the sound sensor:
- Connect the VCC pin of the sound sensor to the 5V pin of the microcontroller.
- Connect the GND pin of the sound sensor to the GND pin of the microcontroller.
- Connect the OUT pin of the sound sensor to a digital pin on the microcontroller pin 2.
Once the sound sensor is connected, we will move on to the relay module:
- Connect the VCC pin of the relay module to the 5V pin of the microcontroller.
- Connect the GND pin of the relay module to the GND pin of the microcontroller.
- Connect the IN pin of the relay module to another digital pin on the microcontrollerpin 8.
Uploading the Code
After making all the connections, it’s time to upload the code to the microcontroller.
///////////////////////////////////////////////////////////////////////////////////////////////
// Pin Definitions
const int soundSensorPin = 2; // Pin connected to sound sensor OUT
const int relayPin = 8; // Pin connected to relay IN
// Variables
bool lightState = false; // Current state of the light (on/off)
unsigned long clapTime = 0; // Time of the last clap detection
const int debounceTime = 500; // Time between claps to prevent noise
void setup() {
pinMode(soundSensorPin, INPUT); // Sound sensor as input
pinMode(relayPin, OUTPUT); // Relay as output
digitalWrite(relayPin, LOW); // Start with relay off
Serial.begin(9600); // Debugging via serial monitor
}
void loop() {
// Check for clap
if (digitalRead(soundSensorPin) == HIGH) {
// Debounce the signal to avoid false triggering
if (millis() - clapTime > debounceTime) {
// Toggle the light state
lightState = !lightState;
// Update relay state
digitalWrite(relayPin, lightState ? HIGH : LOW);
// Update time of the last clap
clapTime = millis();
Serial.println(lightState ? "Light ON" : "Light OFF");
}
}
}
///////////////////////////////////////////////////////////////////////////////////////////////
Once you have uploaded the code, you are ready to test the device!
Testing the Clap Switch
To test your clap switch:
- Power on the microcontroller and ensure all connections are secure.
- Clap your hands near the sound sensor.
- The relay should activate, turning on the connected lights.
If the lights do not respond, double-check your connections and ensure the code is uploaded correctly.
Final Thoughts
This clap switch project is not only a great introduction to electronics and programming but also adds a unique touch to your home automation system. With just a few components and some basic programming, you can create a functional and fun device that responds to your claps.
If you enjoyed this project and would like to see more such tutorials, please like and subscribe for future updates. Happy building!
